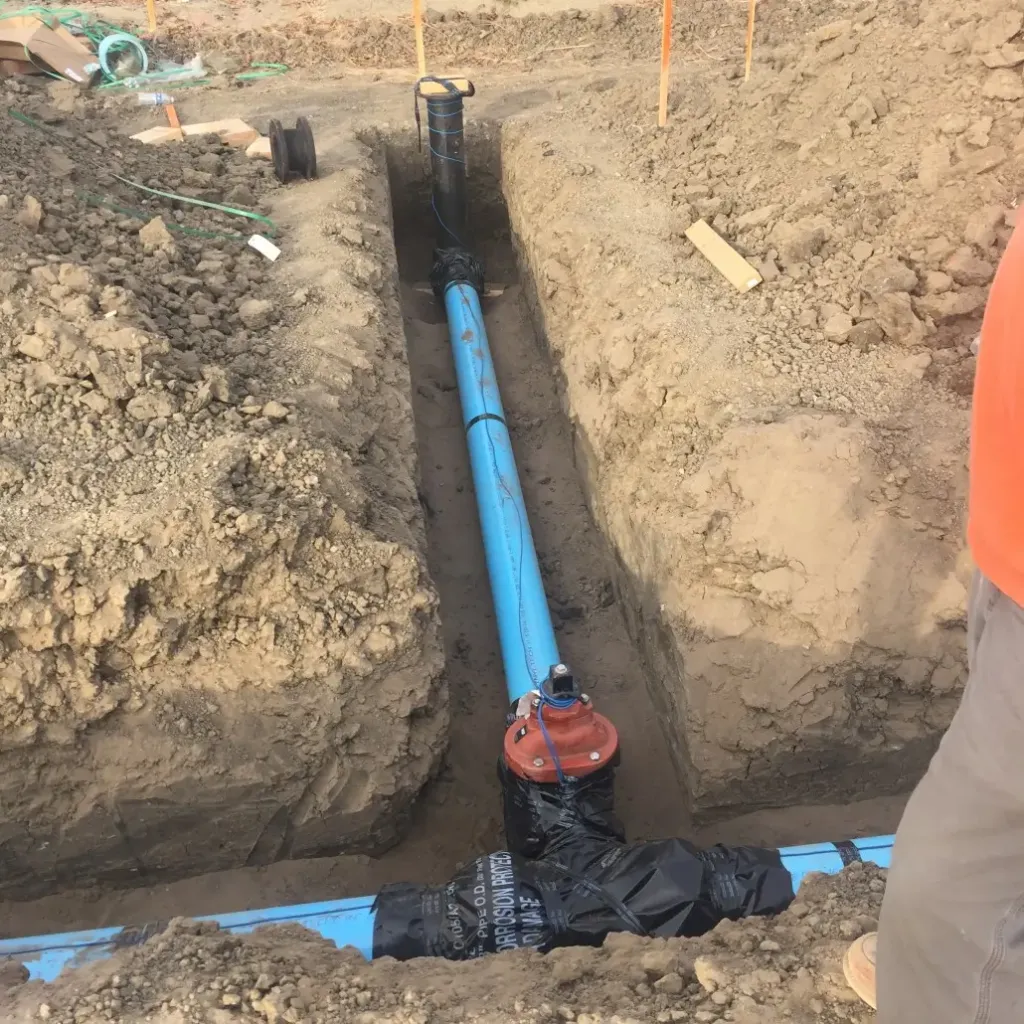

Underground Fire Line Installation Phoenix, AZ
Every fire protection system starts underground. The network of buried piping that carries water to hydrants, sprinklers, and standpipe systems is the foundation of a building’s fire safety infrastructure. At Lifetime Fire Protection, we specialize in underground fire line installation in Phoenix, delivering reliable, code-compliant systems that provide the pressure and flow needed to protect lives and property.
Seamless Coordination
From Day One
We work directly with your architect and project team to integrate the fire sprinkler system into your
building plans—no surprises, delays, or red tags.
Here’s how we help move your project forward:
Customized design plans that meet NFPA 13 and local code
Full coordination with city departments and permitting agencies
Professional crews that install cleanly, efficiently, and with respect for your jobsite
Built-in scheduling support so your system is ready when your timeline calls for it
Design and Planning for Underground Fire Lines
Proper design ensures dependable performance when it matters most. We work directly with developers, engineers, and general contractors to design underground fire lines that meet NFPA 24 and City of Phoenix Water Services Department standards.
Our design phase includes:
– Determining fire flow and residual pressure requirements
– Designing routing and pipe layout from water main to riser or hydrant
– Selecting pipe material, diameter, and joint type
– Locating valves, thrust blocks, and fittings for accessibility and serviceability
– Preparing submittals, CAD drawings, and hydraulic calculations for city approval
We coordinate with civil engineers early in construction to integrate the fire line into the site plan efficiently and safely.

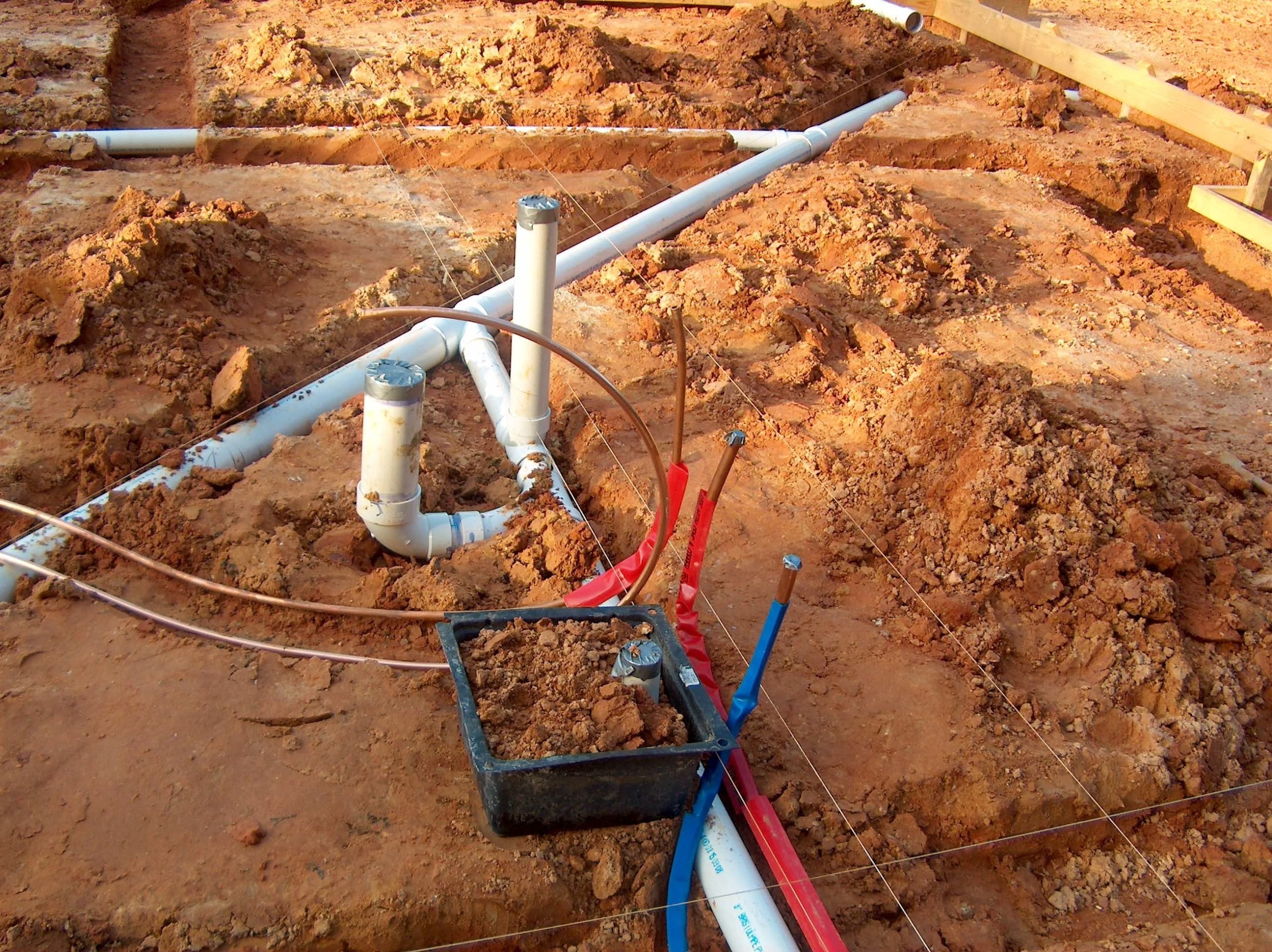

Fire Line Installation for New Construction
For new commercial, industrial, and residential developments, we install complete underground fire main systems using high-quality materials and proven installation techniques. Each system is built to withstand both time and pressure.
The installation process includes:
– Excavation and trenching to required depth and slope
– Installation of ductile-iron or C900 PVC pipe with restrained joints
– Placement of thrust blocks at changes in direction or size
– Assembly of control valves, mechanical joints, and fittings
– Connection to fire hydrant installation in Phoenix, backflow preventers, and sprinkler risers
– Backfilling, compaction, and surface restoration per Phoenix standards
Our crews follow precise alignment and restraint procedures to prevent movement or joint separation during high-pressure fire flow.
NFPA 24 and Phoenix Code Compliance
Every underground fire main is installed in accordance with NFPA 24: Standard for the Installation of Private Fire Service Mains and Their Appurtenances, along with City of Phoenix Engineering and Design standards.
We manage the permitting, inspection, and testing process from start to finish to ensure full approval by the local authority having jurisdiction (AHJ).
Thrust Blocks and Joint Restraint
Pressure surges during firefighting operations can create tremendous force within the piping network. We install concrete thrust blocks and mechanical restraints at all changes in direction, valves, and hydrant connections. Proper restraint prevents pipe movement, leaks, and structural failure under load.

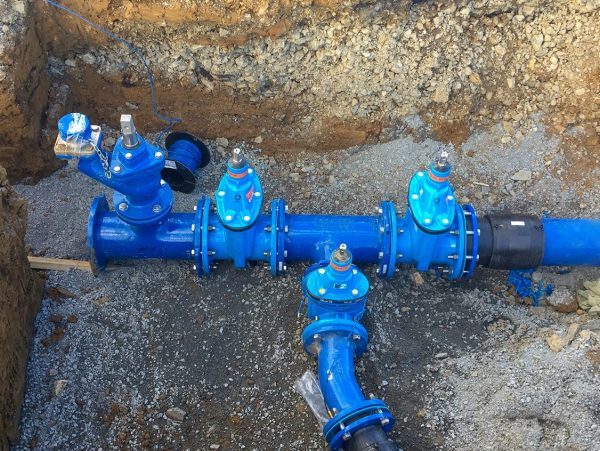

Valve and Fitting Installation
Each underground fire line includes isolation valves, post indicator valves, and sectional control valves. These allow for maintenance or repairs without disrupting the entire system. We install valves and fittings with protective coatings and corrosion control to ensure long-term reliability.
For large facilities, this integrates with our fire pump assembly in Phoenix systems to ensure adequate pressure.

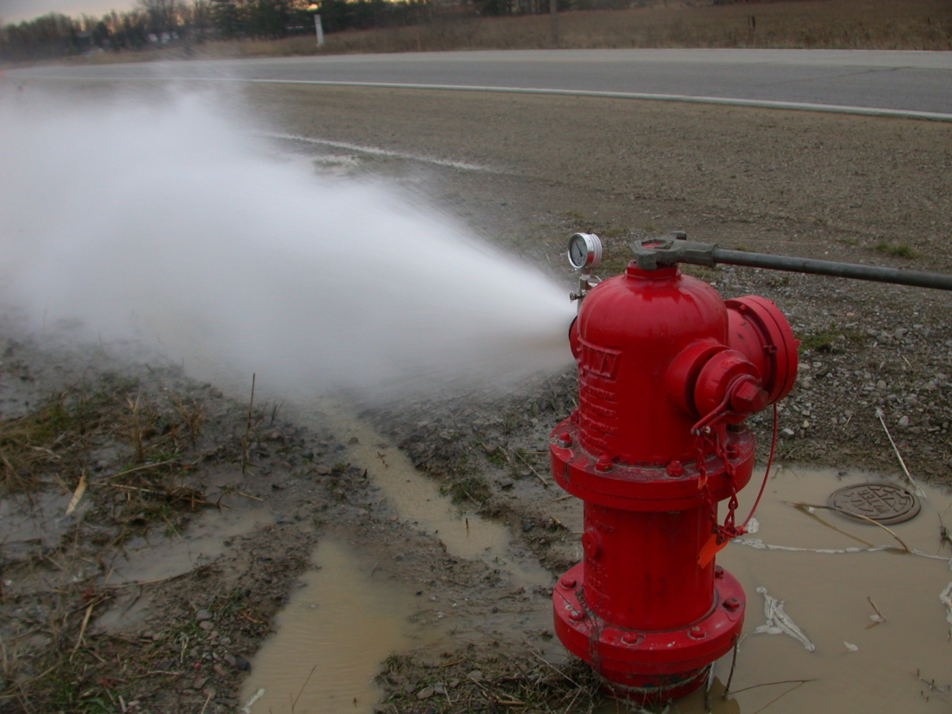

Hydrostatic and Flow Testing
Before final approval, every new fire line undergoes hydrostatic pressure and flow testing witnessed by the AHJ. Testing verifies water-tight joints, system pressure capacity, and unobstructed flow to all connected devices.
Testing includes:
– 200-psi hydrostatic pressure hold for two hours
– Main flush to remove debris and verify clean water supply
– Flow test and pressure measurement at hydrants or test headers
– Valve operation and leak inspection
– Documentation and certification submission

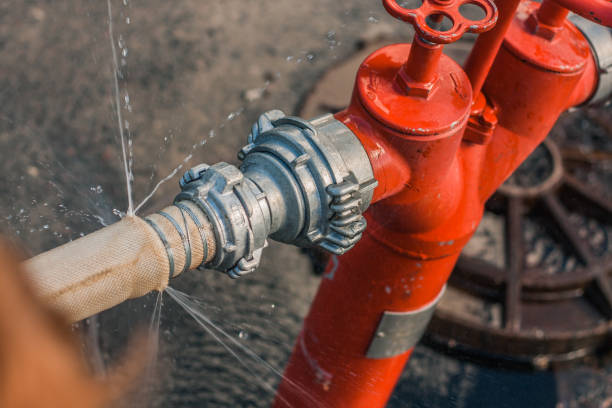

Maintenance and Repair Services
Even underground systems require ongoing care. We provide inspection, maintenance, and repair services for existing fire mains to prevent leaks, corrosion, or pressure loss. Maintenance may include valve exercising, hydrant flushing, leak detection, and joint repair. Routine checks extend service life and maintain code compliance.
Retrofit and Replacement of Existing Fire Lines
When older fire mains no longer meet code or performance requirements, we provide replacement and retrofit services. Our process includes:
– Evaluating existing piping and components
– Removing deteriorated or undersized sections
– Installing new ductile-iron or PVC mains with mechanical restraint
– Reconnecting hydrants, risers, and backflow assemblies
– Testing and certifying the new installation
We minimize downtime by coordinating work in phases to keep buildings protected during upgrades.
Applications for Underground Fire Line Installation in Phoenix
– Commercial and industrial facilities
– Multi-building campuses and business parks
– High-rise and mixed-use developments
– Hospitals and healthcare properties
– Educational and government buildings
– Residential subdivisions and HOA communities
Each project is designed and installed to ensure reliable fire flow, accessibility, and inspection readiness.
Why Proper Underground Fire Line Installation Matters
The performance of every sprinkler, hydrant, and standpipe system depends on the integrity of the underground main. Correct installation ensures:
– Adequate flow and pressure for firefighting operations
– Protection against leaks, contamination, and pressure surges
– Compliance with NFPA 24 and city engineering requirements
– Long-term system reliability and safety
These underground mains work alongside our fire sprinkler system installation in Phoenix services to provide complete fire protection.
Serving the Phoenix Metro Area
We provide underground fire line installation across Phoenix, Tempe, Mesa, Chandler, Glendale, and Scottsdale. Whether your project involves new construction or replacement of aging infrastructure, we deliver precise installation and full compliance from trench to final inspection.
For details on our full range of fire sprinkler installation, maintenance, and repair services in Phoenix, visit our main services page.
